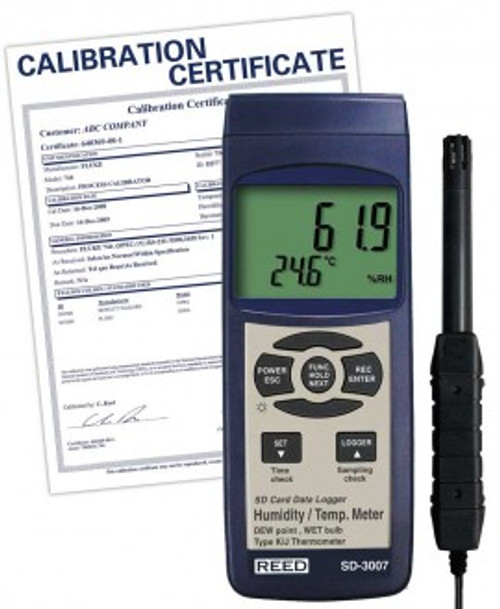

REED Instruments SD-3007-NIST THERMO-HYGROMETER W/ TYPE K THERMOCOUPLE, DATA LOGGER W/NIST CERT

(No reviews yet) Write a Review

MSRP: $698.60

$554.00

(You save $144.60 )

Brand: REED Instruments
SKU:: SD-3007-NIST
UPC:
Availability:: DISCONTINUED

Current Stock:

Description
0 Reviews

REED SD-3007-NIST Description

This SD series datalogging thermo-hygrometer measures ambient temperature, relative humidity, dew point, and wet bulb temperatures as well as temperature with an integrated Type J/Type K thermocouple thermometer. The SD-3007 features automatic temperature compensation, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using an SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

This product includes a Traceable Certificate with full Data and Uncertainties.

Features

Measures relative humidity, ambient temperature and dew point wet bulb temperatures
Contact temperature measurement with a type J/K thermocouple option
Temperature is measured in ?C or ?F
Real time data logger with integral SD memory card
User selectable sampling rate from 1 to 3600 seconds
Large, easy-to-read backlit LCD display
Data hold and Min/Max functions
Optional PC software features live tracking via USB connection
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

REED SD-3007 Specifications

Temperature
Measuring Range	32 to 122?F (0 to 50?C)
Accuracy	?0.8?F (1.5?C)
Resolution	0.1?F/?C
Contact Temperature (Probe sold separately)
Measuring Range	Type K: -148 to 2372?F (-100 to 1300?C) Type J: -148 to 2192?F (-100 to 1200?C)
Accuracy	?0.4% rdg +1.8?F (1?C)
Resolution	0.1?F/?C
Dew Point
Measuring Range	13 to 120?F (-25 to 48?C)
Accuracy	Sum of temp and RH accuracy
Resolution	0.1?F/?C
Wet Bulb
Measuring Range	-6 to 122?F (-21 to 50?C)
Accuracy	Sum of temp and RH accuracy
Resolution	0.1?F/?C
Humidity
Measuring Range	5-95% RH
Accuracy	? (3% rdg. + 1% RH): ?70% RH ? 3% RH: < 70% RH
Resolution	0.1% RH
General Specifications
Display	Dual Display, LCD
Backlit Display	Yes
Data Hold	Yes
Min	Yes
Max	Yes
Datalogging Capabilities	Yes
Real-Time Clock and Date Stamp	Yes
Sampling Rate	Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory	Yes, expandable up to 16GB with SD card (optional)
Auto Shut-off	Yes (after 10 mins/off)
Kick Stand	Yes
Tripod Mountable	Yes
Low Battery Indicator	Yes
Power Supply	6 x AA batteries or AC Adapter (optional)
Output	Yes (AC)
Battery Life	Sampling Time Dependent
PC Connectivity	USB Cable (optional)
Software	SW-U801-WIN Software (optional)
Software OS Compatibility	Windows XP / Vista / 7
Product Certifications	CE
Operating Temperature	32 to 122?F (0 to 50?C)
Storage Temperature	14 to 140?F (-10 to 60?C)
Operating Humidity Range	10-80%
Dimensions	7 x 2.7 x 1.9" (177 x 68 x 45mm)
Weight	1.13 lb (515g)
