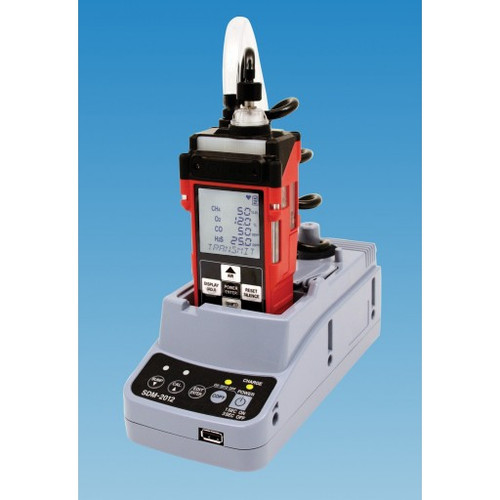

RKI Instruments SDM-2012 Calibration Station for GX-2012


Product Description

RKI’s new SDM-2012 calibration station for the GX-2012 is now available with advanced features for charging, calibration, & bump testing. Once you power up the GX-2012 inside the SDM-2012 calibration module, the GX-2012’s display will indicate whether it’s transmitting data, bump testing, calibrating, and it will indicate the results of the bump test or calibration.

The SDM-2012 is a versatile maintenance tool that automates the service of a GX-2012 portable gas monitor. This docking station can be used as a stand alone device for charging, calibration and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).

Key Features:

  • Stand-alone station (no PC required)
  • Charging (Li-ion battery pack)
  • Calibration
  • Bump test
  • Save bump test and calibration records
  • Bump test and calibration records copy to USB jump drive
  • Includes PC software for viewing/archiving bump test and calibration records


  • Input power: 12 VDC, NOTE: AC adapter with 100 - 240 VAC, 50/60 Hz, 0.6A input and 12 VDC, 1.2A output provided as standard.
  • Environmental Conditions: For indoor use only, -10 degrees C to 40 degrees C, below 80 percent relative humidity, non-condensing
  • Applicable instruments: GX-2012 and Gas Tracer
  • Maximum number of records saved: 200 (stand-alone)
  • Number of calibration gas cylinders: Up to two calibration gas cylinders per bump test or calibration at a time

Standard Accessories:

  • AC adapter
  • USB flash drive
  • Single Module Data Viewer Software
  • SDM Docking Station PC Controller Software
  • Inlet air filter
  • Instruction manual
  • 10 ft. long exhaust tube
  • Two 3 ft. long tubes for GAS 1 and GAS 2 fittings
  • 3 T-fittings for PC controlled configuration
  • USB cable, Type A to Type B
