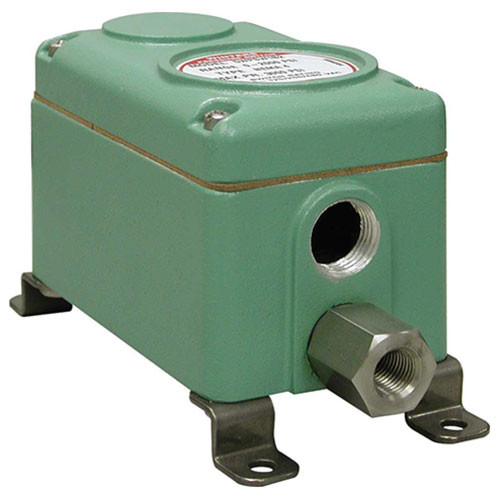

Winters 5WPS SWITCH, AL, NEMA 4X/12/13, 0-200PSI, SPDT, ADJ, 1/4"NPT 5WPS0200AFX
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters 5WPS SWITCH, AL, NEMA 4X/12/13, 0-200PSI, SPDT, ADJ, 1/4"NPT 5WPS0200AFX
$2,168.55
- Brand
- U.S. Winter instruments
- SKU:
- 5WPS0200AFX
Winters 5WPS0200AFX Offers
Features
- Bellows actuated ?rictionless?witching mechanism
- 15 to 5000 psi pressure range
- One or two SPDT switch
- Adjustable deadband available
- Cast aluminum construction with stainless steel wetted parts
- NEMA 4X, 12 and 13 enclosure rating
- UL recognized
Applications
- Pumping stations
- Remote locations
- High-Low level control (requiring dual elements)
Winters 5WPS0200AFX Specifications
| Maximum Working Pressure | 1500 psi (104 bar) |
| Pressure Connection | ?" NPTF |
| Electrical Connection | ?" NPTF conduit connection |
| Set Point Adjustment | Screw type, field adjustable |
| Deadband | Fixed |
| Contact | Rating: 15 amps at 125/250/480 V AC Number of contacts: 1 x SPDT (2 x SPDT optional) |
| Ambient Temperature | -40 to 180?F (-40 to 82?C) |
| Sensitivity | ?0.5% of range (for one SPDT switch) |
| Enclosure Rating | NEMA 4X, 12 and 13, hermetically sealed switch option available |
| Approvals | UL recognized (switch only) |
| Weight | 3 lbs (1.36 kg) |
