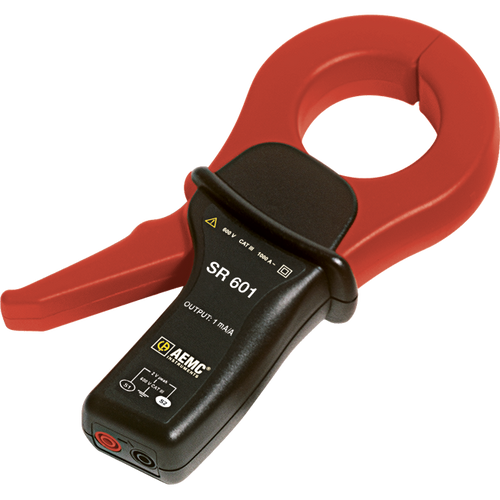

AEMC AC Current Probe Model SR601

$204.00
SKU:
SR601
Brand:
Quantity:

Product Description

AEMC AC Current Probe Model SR601 The SR601 is a general purpose 1000AAC current probe designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp measured in the jaw. The SR601 has jack output termination that accept 4mm banana plugs. Features diode protection for open secondary (output). The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift is important Maximum Conductor Size 2.05" (52mm) Current Range 1000Arms AC Measurement Range 0.1 to 1200A Output Two standard banana jack (4mm) Transformation Ratio 1000:1 Output Signal 1mA/AAC (1A @ 1000A) Accuracy 50/60Hz 0.5% @ 1000A Frequency Range 30Hz to 5KHz Phase Shift at 50Hz 0.5° @ 1000A Open Secondary Voltage Limited to <25V Load Impedance 1Ω, 5Ω max with derating Overload 1200A for 40 mn ON then 20 mn OFF Dimensions  (H x W x D) 4.37 x 8.50 x 1.77” (111 x 216 x 45 mm) Weight 1.21 lbs (550g) Operating Temperature 14° to +122°F (-10° to +50°C) Storage Temperature -4° to +158°F (-20° to +70°C) Operating Humidity 90% RH Pollution Degree 2      Ingress Protection (Ip) IP40 EMC EN 61326-1 Safety Compliance EN/IEC 61010-1 600V CAT III,EN/IEC 61010-032
